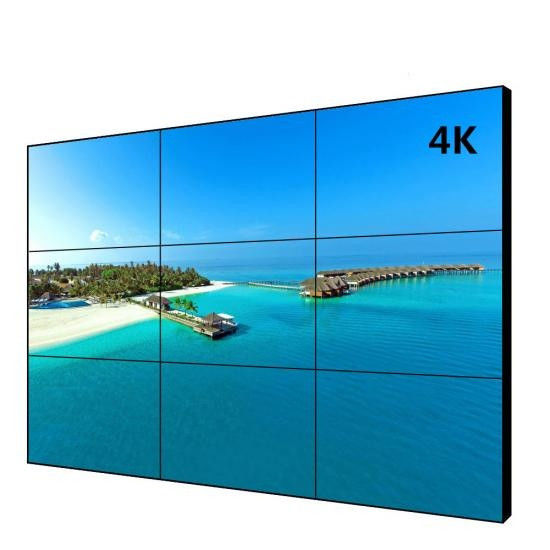

3.5mm Bezel Lcd Splice Open Source Display Advertising Video Wall Digital Signage
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | KINDLO |
| Certification: | 3C,FCC,CE,GS,RoHS |
| Model Number: | KINDLO-PJ46-4K |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic packaging > foam > export standard carton |
| Delivery Time: | 7-15days（Negotiated） |
| Payment Terms: | T/T |
| Supply Ability: | 1500,pieces/week |
|
Detail Information |
|||
| Panel Type: | TFT-LCD | System: | Android And Windows |
|---|---|---|---|
| Resolution: | 1920 * 1080 Or 3840 * 2160 | Touch Screen: | Infrared Touch |
| Touch Technology: | IR Touch | Brightness: | ≥350cd/ M2 |
| Total Color: | 16.7M (6-bit + Hi-FRC) | Contrast: | ≥ 5000: 1 |
| Lifetime: | > 60000 Hours | Touch Response Speed: | 8ms |
| Application: | Conference Room, Exhibition Hall, Monitoring Room, Hotel, Etc | Pixel Pitch: | 0.53mm*0.53mm |
| Display Area: | 1018.08 X 572.67mm | Bezel: | 3.5mm |
| High Light: | 3.5mm Open Source Software Video Wall,350cd/m2 Software Video Wall |
||
Product Description
3.5mm Bezel Lcd Splice Open Source Display Advertising Video Wall Digital Signage
3.5mm Bezel Lcd Splice Open Source Display Advertising Video Wall Digital Signage
KINDLO-PJ46-4K
Product Description
♦Fashion apperance with aluminium metal case and 4mm full tempered high explosion-proof glass
♦Convenient Operation with exiquiste module,general format
♦Support multi media format
♦Double systems,one buttom switch
♦customized OPS
♦Customized input interfaces
♦10 point IR Touch Technology
Production Detail
| Model No. |
KINDLO-PJ46-4K |
| Panel Type | 46"DID LED Panel(Diagonal:1168mm) |
| Physical Resolution | 1920(H)X1080(V) |
| Pixel Pitch | 0.53mmX0.53mm |
| Screen Ratio | 16:9 |
| Physical Patchwork | 3.5mm(Level),3.5mm(Vertical) |
| Response Time | <=8ms |
| High Brightness | 550cd/m2 |
| Contrast | 4000:1 |
| Viewing Angle | 178°(H)/178°(V) |
| Display Color | 8Bits, 16.7M |
| Surface | Anti-glare |
| Refresh Rate | 60Hz |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Video input | CVBS(BNC) x 2, S-VIDEO(Y/C)x1 |
| Computer signal input | VGA x1 |
| Digital input | DVIx1, HDMIX1, 1080P(1920x1080)Backward Compatible |
| HD input | YPbPrX1, 1080P(1920X1080)Backward Compatible |
| Video Output | CVBS(BNC)x2 |
| Large Screen Splicing Module | Built-in, D-Sub15in X1, D-Sub15Out X1 |
|
Intelligent Cooling System
|
Intelligent temperature control fan, fan self-test function, save energy consumption, reduce noise, reduce temperature, improve reliability |
| System Control Method | Chinese and English language switching, contrast, brightness, sharpness, color saturation, hue, signal switching, source browsing, color temperature adjustment, reproduction rate switching, running status display |
| Engineering Software | Customized |
| Operation Method | Wire control, remote control |
| Bus Control | 12C |
| Video Format | PAL,NTSC |
| Wide Voltage Design | 100~240V AC |
| Power Consumption | 165W |
| Frame Size | Up:2.3mm ; Down:1.2mm; Left:2.3mm; Right:1.2mm |
| Dimensions | 1021.98mm x 576.57mm(W x H) |
| Display Area Size | 1018.08mm x 572.67mm(W x H) |
| Mounting Holes | 600mm x 400mm(W x H) |
| Installation Method | Hanger (optional),Bracket (optional),Cabinet (optional) |
| Weight (including packaging) | About 12KG |
| Storage Temperature | -20°C~60°C |
| Operating Temperature | 0°C~50°C |
| Working Humidity | 10%~90% |
| Shell Material | Metal shell, anti-static, anti-magnetic field, anti-strong electric field interference |
| Quality Standard | 3C |
After Sales Service:
After sale, if you have any questions about our product, you can inform us by mail or call, and we will reply youin 24 hours when we get you E-mail or call, and offer you a good solution for your problem.
We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company such as visa, hotel, food, plane ticket for back and forth, and also your esteemed company should pay our staff USD100/ day/staff (from our engineer's departure from Guangzhou) and should help to arrange our staff visa.
Light color assist the training and technical support for the customer in the factory, if the customer need. You can send your engineer to our factory for training about test, installation, maintenance. We will offer professional training free.
Why Choose Us
Guangzhou Jingdinuo Electronic Technology Co., Ltd. which is the first professional manufacturer of commercial display equipment.
We have more than 20 years production experience and over 10 years export trade.All of our product have strict inspection and passed
the CE, CCC, RoHS, FC and IEC certifications to insure quality. We owe 2000 square meters large factory. We have won the big support
from the customers through the efforts of more than 100 colleagues.
We have professional technical personnel, rich operational experience and excellent technical strength etc. Professional designers team
make sure to meet customers’ requirements. Until now our products and services have recognized by customers.
