Product Details:

Place of Origin: Guangzhou,China
Brand Name: KINDLO
Certification: 3C,FCC,CE,GS,RoHS
Model Number: KINDLO-HYLD-43-T

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Plastic packaging > foam > export standard carton
Delivery Time: 7-15days(Negotiated)
Payment Terms: T/T
Supply Ability: 1500,pieces/week
Get Best Price Contact Now

Detail Information

Screen Type: LG/Sumsung/ LED Module Resolution: 1920 * 1080 Or 3840 * 2160
Brightness: ≥1000/1500/2000/2500/3000cd / M2 System: Android Wifi Type
Touch Screen: Nano Screen Total Color: 16.7M (6-bit + Hi-FRC)
Viewing Angle: 178/178/178/178 Refresh Frequency: 60Hz
Contrast: ≥ 4000: 1 Input Power: 220V AC 50 / 60Hz
Working Temperature: -30 ° C To + 50 ° C Lifetime: > 50000 Hours
Audio Playback: Jpg, Bmp, Png, Gif, Jpeg Picture Format: Mp3, Wma, Ogg, Aac, Wav
Video Playback: Avi, Divx, Mp4, Mpeg, Vob, H264, Ts, Tp, M2ts, Flv, Mov, M4v, Mkv
High Light:

led standee


digital signage led screen

Product Description

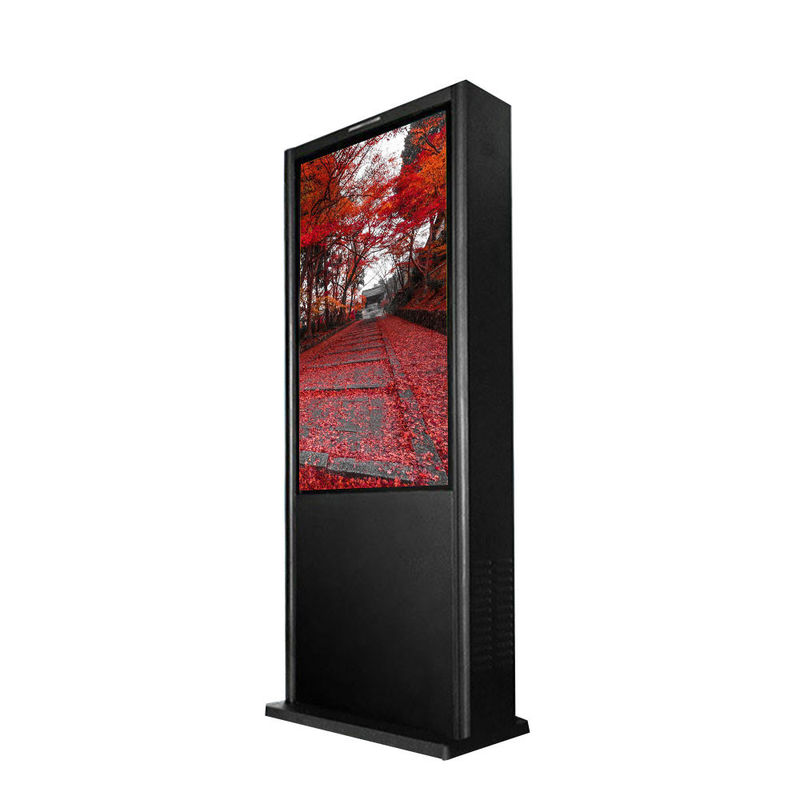

43 Inch Digital Led Advertising Board Floor Standing Nano Touch Outside

43 inch advertisng floor standing nano touch outdoor digital signage displays





1. Patented LED backlight, the brightness can reach as high as 2000cd under strong sunlight (roughly 3 times of other standard products)
2.Broad working ambient temperature: 0C to +35°C
3.The LCD screen can resist condensation in low temperature and humid environment
4.Outdoor all-weatherproof, dustproof designed + energy-saving fans cooling



Software functions:

Model No. KINDLO-HYLD-43-T
Panel size 43 inches
Display area(mm)/mode 1209.6mm(H) x 680.4mm(V) 16:9
Maximum resolution 1920*1080
Display color 16.7M
Pixel Pitch(mm) 0.63mm(H) x 0.63mm(V) (mm)
Brightness (nits) 2000cd/m2
Contrast 1200: 1
Visual angle 178°/178°
Response time 8ms
Life(hrs) >60,000(hrs)
Input and output
Power Supply 700w
Power 220v
Audio(L/R) input 1
Audio(L/R) output 1
Speaker 2×8 ohm(5V)
OSD display( screen menu display)
Menu language Chinese, English, etc.
Power supply AC100~240V 50 /60 HZ
Maximum power consumption ≤ 3500W
Standby power consumption <5W
Enclosure System
Material Silver Aluminum Alloy+Metal Bottom Shell
Screen Surface Protection Super Tempered Glass
Interfaces 3 USB /HDMI*3, VGA* 1
Operating System 0~35°C
Waterproof grade Outdoor IP65
Speaker Power 2*8 ohm 5V
Detailed functions
Audio format Wave/MP3/WMA/AAC
Image resolution 480P/720P/1080P
Split screen display Editable
Running subtitle location, word size, color and backlight are editable
Android Computer
Motherboard MSD6A828 (64bits, high speed processor)
Built-in Storage EMMC INAND 5G
Operation System Android


Cooling System:

• Integrated Intelligent fan temperature control, heating system, outdoor environment between -30-+50 degrees, the display is not in black, the whole machine works normally;

• Imported centrifugal/axial flow fan, equipped with fan speed control board, automatic temperature sensing, automatic adjustment of fan speed, energy saving and extended fan life;

• Efficient multi-layer filtration system to isolate harmful dust into the machine, the overall protection level reaches IP55


Testing System:

Spray waterproof test; High and low temperature test; Solar radiation test; Machine aging test


Explosure-proof Glass:

5mmAR anti-reflective glass, imported glass original film, anti-glare by AR coating; light transmittance 97%, reflectivity 3%; 99% solar ultraviolet light isolation, 52% solar radiation heat; tempered explosion-proof


Electronic Control System:

• Leakage protection switch, leakage protection, overvoltage protection;

• Microcomputer time switch, control the start and stop of the machine by time-sharing;

• Lightning protection device, lightning protection level C, to prevent instantaneous lightning strikes;

• Industrial grade power supply, stable and reliable power supply;


Applicable places:

Financial institutions: banks, securities, funds, insurance companies, pawn shops, etc .;


Public places: bookstores, exhibition halls, stadiums, museums, conference centers, talent markets, etc .;


Entertainment and leisure: cinemas, fitness gyms, resorts, entertainment venues, foot baths, KTV bars,

beauty salons, golf courses, etc .;


Commercial institutions: Western restaurants, fast food restaurants, supermarkets, chain stores, 4S stores,

specialty stores, star hotels, travel agencies, drug stores, etc .;


Industrial sites: food processing equipment, machinery control, office automation equipment, automated testing,

automotive testing equipment, etc .;


Transportation place: bus station, passenger station, subway, high-speed rail, airport, etc .;


Medical places: hospitals, medical institutions, pharmacy chain institutions, etc.


After Sales Service:

After sale, if you have any questions about our product, you can inform us by mail or call, and we will reply you

in 24 hours when we get you E-mail or call, and offer you a good solution for your problem.


We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed

company such as visa, hotel, food, plane ticket for back and forth, and also your esteemed company should pay our

staff USD100/ day/staff (from our engineer's departure from Guangzhou) and should help to arrange our staff visa.


Light color assist the training and technical support for the customer in the factory, if the customer need. You can send

your engineer to our factory for training about test, installation, maintenance. We will offer professional training free.




43 Inch Digital Led Advertising Board Floor Standing Nano Touch Outside 0


Why you choose Jingdinuo?

43 Inch Digital Led Advertising Board Floor Standing Nano Touch Outside 1

Guangzhou Jingdinuo Electronic Technology Co., Ltd. which is the first professional

manufacturer of commercial display equipment. We have more than 20 years production

experience and over 10 years export trade.


All of our product have strict inspection and passed the CE, CCC, RoHS, FC and IEC

certifications to insure quality. We owe 2000 square meters large factory. We have won

the big support from the customers through the efforts of more than 100 colleagues.


We have professional technical personnel, rich operational experience and excellent

technical strength etc. Professional designers team make sure to meet customers’

requirements.  Until now our products and services have recognized by customers.



Our main products:


Stand floor digital signage/ Wall mount digital signage/ Outdoor digital signature/

Elevator digital signage/ Hanging double side digital signage/ LCD video wall/

Transparent showcase etc.

Welcome to cooperate on mutual benefits together. Many thanks!
