Customized LCD Interactive Smart Multi Touch Screen Table RoHS Certified

Customized LCD Interactive Smart Multi Touch Screen Table RoHS Certified

Product Details:

Place of Origin: Guangzhou,China
Brand Name: KINDLO
Certification: 3C,FCC,CE,GS,RoHS
Model Number: KINDLO-TB43

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Plastic packaging > foam > export standard carton
Delivery Time: 7-15days(Negotiated)
Payment Terms: T/T
Supply Ability: 1500,pieces/week
Get Best Price Contact Now

Detail Information

Screen Type: LG/Sumsung/ LED Module Touch Screen: Capacitive Touch
Resolution: 1920 * 1080 Total Color: 16.7M (6-bit + Hi-FRC)
Brightness: ≥350 Cd / M2 Refresh Frequency: 60Hz
Contrast: ≥ 1000: 1 Input Power: 220V AC 50 / 60Hz
Output Power: 12V5A; 24V 5A Lifetime: > 50000 Hours
High Light:

RoHS Interactive Multi Touch Screen Table


Customized LCD Multi Touch Screen Table

Product Description

Customized LCD Interactive Smart Multi Touch Screen Table RoHS Certified

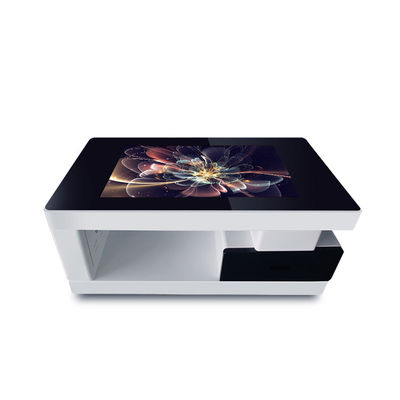

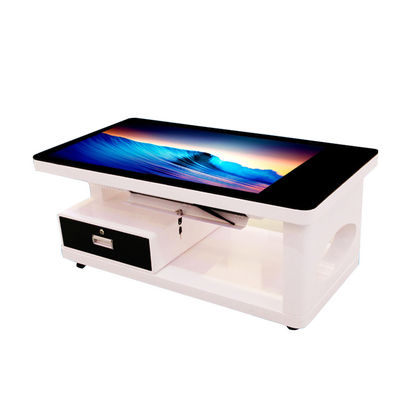

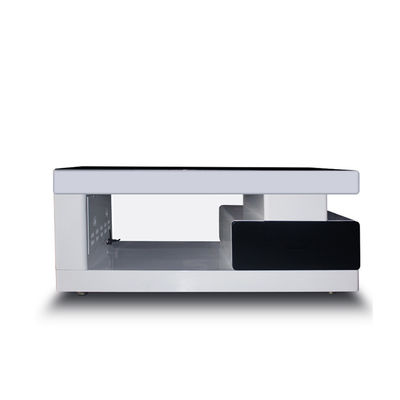

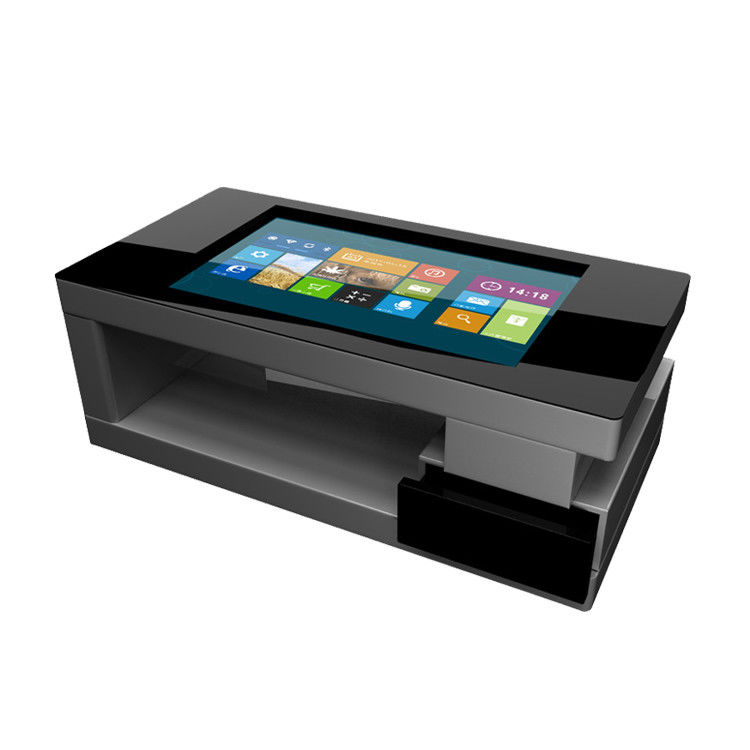

43 inch customized interactive smart multi touch screen coffee table TFT LCD screen

Quick Details:

● Place of Origin: Guangdong, China

● Type: TFT

● Application: Indoor

● Panel Size: 65''

● Max Resolution: 1920*1080

● Viewing Angle: 178V/H

● Pixel Pitch: 0.630*0.630mm

● Color:16.7M, blue, silver, black,etc (Optional)

● Contrast Ratio: 1200:1

● Brightness: 500cd/m2

● Response Time: 8ms

● Optional size: 42'' 46'' 55'' 65''available

● Panel: Samsung/LG/CHIMEI

● Panel Life: Above 50000 hours

● Front Panel: Toughened glass panel

● Power Supply: 110V,220V

● USB port: Yes

● Card reader: SD /CF/ USB

● Menu Language: English, French,Germany...etc

● application: Exhibition fair, mall,hospital,lobby,hotel restaurant,subway,etc.

● Input Voltage: AC 110-240V



LCD Specification
Display Ratio 16:9
Backlight LED
MTBF 50000Hrs
Active Area 942.20mm x530.40mm
Viewing Angle 89°/89°(Left / Right),89°/89°(Vertical / Horizontal)
Support Color 16.7M colors
Optical Response Time Typ. 5ms
White Luminance Typ.350cd/m2
Contrast Ratio Typ.1000:1
Electrical Interface LVDS
Display Resolution 1920*1080 / 60Hz , 70Hz


Touch Panel
Type Projected Capactive Multi-Point Touch Panel
Size 43 inch
Active Area 944.20mm×532.40mm
Total Thickness 3mm
Hardness 7H
Anti-vandal Treatment Chemical strength
Consumption ≤0.3W
Interface Type USB2.0
Touch Points 10 point
Response Time ≤10ms
Linearity ≤2%
Minimum Touch Diameter 1.5mm
Touch Strength ≤10g
Touch Panel Life Time ≥60million touches
Touch Operation Finger or touch pen
Compatible O/S WinXP, Win7, Win8, Android, Linux
Monitor Specification
Outline Dimension 1020mm×608mm×75.10mm
Product Color Black with galvanized silver
Product Construction Pure plane
Environment Parameter

Operation:-0~50°C Storage:-20~70°C

Operating Humidity:20%~90%

Interface VGA, DVI, HDMI
Installation VESA 240mm /400mm or bracket
Heat Radiation Natural Air Cooling
Input Voltage AC100~240V
Warranty 12 months
Certification CCC,CE,FCC,RoHs
X86 MainBoard (Standard Equipped)
CPU Onboard CPU i3-4 dominant frequency 1.7GHz~1.9
Memory vaseky 4G
Mini SSD vaseky MSATA 60G
WIFI 802.11b/g/n WLAN
Loud speaker 8Ω/5W *2
O/S Windows 7


After Sales Service:


After sale, if you have any questions about our product, you can inform us by mail or call, and we will reply you

in 24 hours when we get you E-mail or call, and offer you a good solution for your problem.


We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed

company such as visa, hotel, food, plane ticket for back and forth, and also your esteemed company should pay our

staff USD100/ day/staff (from our engineer's departure from Guangzhou) and should help to arrange our staff visa.


Light color assist the training and technical support for the customer in the factory, if the customer need. You can send

your engineer to our factory for training about test, installation, maintenance. We will offer professional training free.




Customized LCD Interactive Smart Multi Touch Screen Table RoHS Certified 0


Why you choose Jingdinuo?

Customized LCD Interactive Smart Multi Touch Screen Table RoHS Certified 1

Guangzhou Jingdinuo Electronic Technology Co., Ltd. which is the first professional

manufacturer of commercial display equipment. We have more than 20 years production

experience and over 10 years export trade.


We have professional technical personnel, rich operational experience and excellent

technical strength etc. Professional designers team make sure to meet customers’

requirements.  Until now our products and services have recognized by customers.



Our main products:


Stand floor digital signage/ Wall mount digital signage/ Outdoor digital signature/

Elevator digital signage/ Hanging double side digital signage/ LCD video wall/

Transparent showcase etc.

Welcome to cooperate on mutual benefits together. Many thanks!
