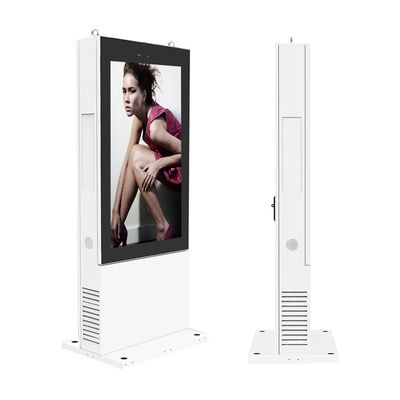

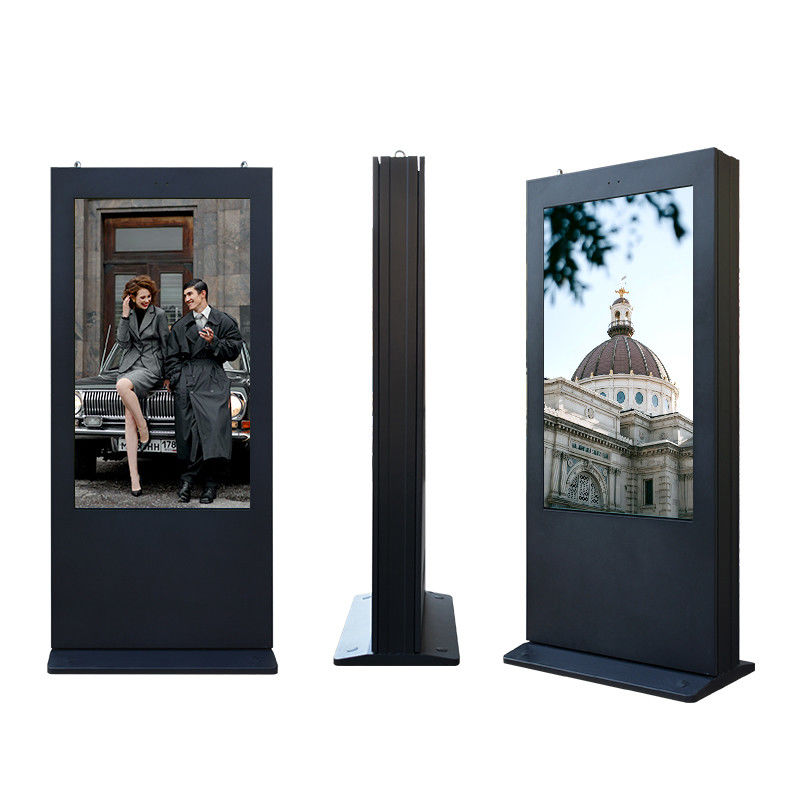

Outdoor Waterproof Advertising Kiosk RK3288 Digital Signage Displays Equipment

Model

Windows Version

Android Version

Screen

Panel Brand

Full New 100% A+ Grade Brand Panel

Panel Size

43, 49, 55, 65, 75, 86 inch

Display Size

43’’: 941.184 × 529.416 (H×V)

Display Ratio

16:9

Resolution

1920*1080

View Angel

178°/178° (H/V)

Color

16.7M

Backlight

LED

Brightness

2500nits

Contrast

1500:1

OS System

Standard Main Board: Celeron J1900

Standard Main Board: RK3288

RAM

4G

RAM

2G

Hard Disk

128G SSD

Storage

8G

Network

LAN&WIFI

Network

LAN&WIFI

OS Version

Win7/8/10

OS Version

5.1/6.0/7.1

3G/4G function are optional

Outer shell:

1. IK10 and IP65 level outer shell is made by galvanized sheet.
2. With a protection layer of high-penetrating Tempered glass (with 5-8mm thickness) on the surface of the LCD Panel.
3. Surface finishing: heavy industrial grade of powder coating with an anti-wear texture for Outdoor using.
4. Water-proof, dust-proof double layer outer shell,vandal proof.

Security Configuration

1.Battery of car power protection: 1 low voltage protection and 1 timer protection
2.Alternator protection:1 set low voltage protection.
3.Aditional 1 minute fast cooling system for when power on after high soloar exposure.
4. Environment camera (if needed, addtional costs: $30)
5. Filter block percentage detection sensor.
6. Door open sensor
7. Human sensor and warning with people photos upload.
8. 7/24 hours video recording of double side.(2 camera need 130 usd additonal)

Outdoor OMC system (outdoor maintenance and management cloud software system):

1. Every product inlcudes 10 kinds of sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration
sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor).
2. Problem and staus monitoring software included.
3. Touble shooting by software included.
4. Use softwae Remote Check key working performance by Group
5. 5.Unnormal work alarm generation.
